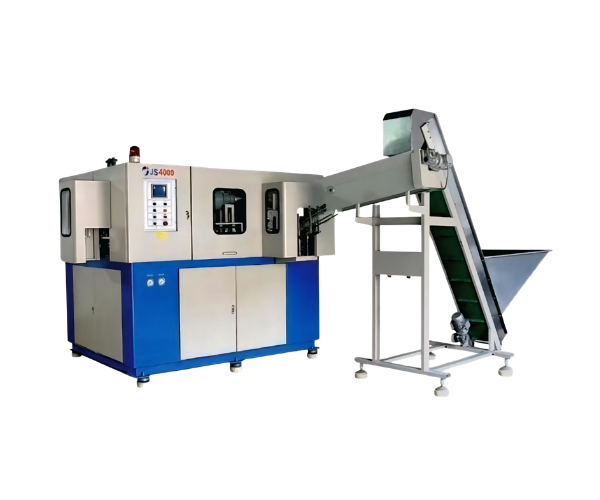

Automatic Blow Molding Machine
High Speed | Fully Automatic | Low Manpower
Core Highlights
✓ Fully Automatic Operation with Single Operator Control
✓ 3 to 6 Cavity, Two-Piece Mould Design for high productivity
✓ Entirely Pneumatically Operated System
✓ Designed for continuous PET bottle production
Moulding & Blowing System
Smart Control System
✓ 8 Ton Hydro Pneumatic Mould Locking System
✓ Differential Ram Type Blowing Valve
✓ Lucifer / Parker Make HP & LP Valves – No jamming, long life
✓ Separate High Pressure & Low Pressure Blowing Stages
✓ In-House Microprocessor Control
- Displays cycle time
- Error detection with stoppage reason
✓ Auto & Manual Operation Modes
Advanced Air Management
Efficient Heating System
✓ Dual Air Tank System (HP & LP) for continuous airflow
✓ Separate High Pressure & Low Pressure Lines
✓ Extra Air Filters for clean & dry air
✓ Maintains stable pressure without drop
✓ Adjustable Infrared Heaters
✓ 12 Heating Zones for uniform temperature
✓ Preform Rotation System for even heating
✓ Neck Protection Cooling Line (Aluminum)
Mechanical & Structural Design
Operation Flow
✓ Tie-Bar System with Gunmetal Bushes
✓ Inbuilt Lubrication System
✓ Anti-Vibration Pads for smooth operation
✓ Fully enclosed Powder-Coated Body
✓ Manual Preform Loading
✓ Automatic Heating → Blowing → Bottle Ejection
✓ Bottles automatically discharged
✓ Requires very low operator involvement
Technical Specifications
| Machine Type | Fully Automatic Blow Molding Machine |
| Model | IPM-BMM-FULLY |
| Cavity Range | 3 to 6 Cavity System |
Production Capacity
| Cavity | Output (BPH) |
|---|---|
| 3 Cavity | 1200 – 1800 BPH |
| 4 Cavity | 1800 – 2400 BPH |
| 6 Cavity |
3000 – 4000 BPH (depends on preform & bottle size) |
| Specification | Details |
|---|---|
| Bottle Size Range | 30 ml to 2000 ml |
| Neck Size | 28 mm |
| Heating System | Infrared (IR) |
| Heating Zones | 12 |
| Heating Power | As per configuration |
| Mould Type | Two-Piece |
| Mould Locking | 8 Ton Hydro Pneumatic |
| Blowing System | Differential Ram Type |
| Control System | Microprocessor Based |
| Air System |
High Pressure Line Low Pressure Line Dual Air Tanks (HP & LP) |
| Power Requirement | Three Phase |
| Machine Weight | Approx. 3000 – 3500 Kg |
| Mould Weight | Approx. 70 Kg |
| Utilities Required |
High Pressure Air Low Pressure Air Water Connection |
