Mineral Water Plant Manufacturer in India
Commercial & Industrial Water Bottling Plants (250 LPH – 20,000 LPH)
Industrial Mineral Water Purification & Bottling Machinery
A high-quality Mineral Water Plant is essential for producing safe, hygienic, and purified drinking water at commercial and industrial scale. Whether you are planning to start a packaged drinking water business, expand beverage production, or install a complete water purification system for industrial use, choosing the right mineral water plant directly affects water quality, production efficiency, and long-term operational cost.
At Dada’s Soda, we manufacture advanced Mineral Water Production Plants designed with modern filtration technology, energy-efficient systems, hygienic stainless steel construction, and fully automated operation. Our systems are suitable for small-scale, medium-scale, and large-scale packaged drinking water production units across India and export markets.

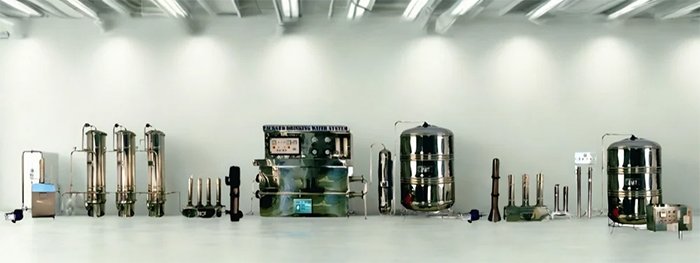

What is a Mineral Water Plant?
This plant is a complete water purification and bottling system used to treat raw water and convert it into safe, purified, mineral-balanced drinking water. The system removes impurities, dissolved solids, bacteria, viruses, odor, and harmful contaminants using multiple filtration and purification stages.
The purified water is then stored, mineralized (if required), and filled into bottles, jars, or pouches using automatic filling and packaging Machines.
Technical Specifications
| Specification | Details |
|---|---|
| Plant Capacity | 250 LPH to 20,000 LPH |
| Material | Stainless Steel SS304 / SS316 |
| Automation Grade | Fully Automatic / Semi Automatic |
| RO Membrane Type | Thin Film Composite |
| Voltage | 220V / 380V / 440V |
| Power Consumption | Depends on plant capacity |
| Filtration Stages | Multi-stage purification |
| Micron Filtration | 10µ / 5µ / 1µ |
| Filling System | Automatic Bottle Filling |
| Bottle Sizes Supported | 200ml to 20L |
| Operating Pressure | Customized |
| Water Recovery Rate | Up to 60% |
| Installation Support | Available |
| Industry Standards | ISI / BIS compliant design |
Detail of Our Custom Mineral Water Plant
Application:
Packaged Drinking Water Production
Capacity:
1000 to 10,000 LPH (Customizable)
Condition:
Brand New
Operation:
Fully Automatic System
Control Panel:
PLC-Based Smart Control
Power Requirement:
Three-Phase Supply
Applications of RO Mineral Water System
RO system for Mineral Water are widely used in:
- Packaged drinking water industries
- Beverage manufacturing units
- Hotels & resorts
- Hospitals
- Pharmaceutical companies
- Food processing industries
- Commercial establishments
- Educational institutes
- Railway & transport catering units
Multi-Stage Water Purification & Bottling Process in Mineral Water Plant
Input: Borewell water / municipal water / surface water containing impurities
Process: Pumping and storage in raw water tank
Output: Stored untreated water ready for filtration
👉 At this stage, water may contain turbidity, bacteria, hardness, and dissolved solids.
1. Raw Water Intake
y=f(x)
Input: Raw stored water with suspended solidsProcess: Depth filtration using graded sand, gravel, and anthracite media
Output: Water with reduced turbidity and suspended particles
👉 Removes visible impurities like mud, dust, and rust particles.
2. Sand / Multimedia Filtration
3. Activated Carbon Filtration
Input: Pre-filtered water
Process: Adsorption of chlorine, odour, and organic compounds
Output: Clear, odour-free water with improved taste
👉 This stage improves smell, taste, and chemical quality.
4. Reverse Osmosis (RO) System
Input: Pre-treated water
Process: High-pressure membrane filtration removes dissolved salts, TDS, heavy metals
Output: Purified low-TDS water
👉 This is the core purification stage of the entire plant.
Input: RO-treated water
Process: Ultraviolet rays destroy bacteria and viruses at DNA level
Output: Microbiologically safe drinking water
👉 Ensures biological safety without adding chemicals.
5. UV Sterilization
Input: UV-treated water
Process: Ozone gas injection for final disinfection
Output: Sterile water with extended shelf life
👉 Acts as a final safety barrier before bottling.
6. Ozone Treatment
7. Mineral Dosing Unit
- Input: Demineralized RO water
- Process: Controlled addition of essential minerals like calcium & magnesium
- Output: Balanced mineral drinking water This step defines taste and nutritional quality.

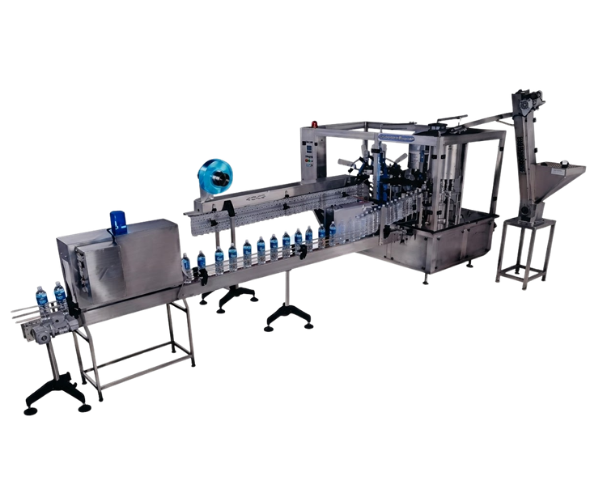

8. Storage & Bottling System
- Input: Final treated water
- Process: Stored in hygienic tanks and transferred to automatic filling line
- Output: Sealed bottled mineral water ready for market
