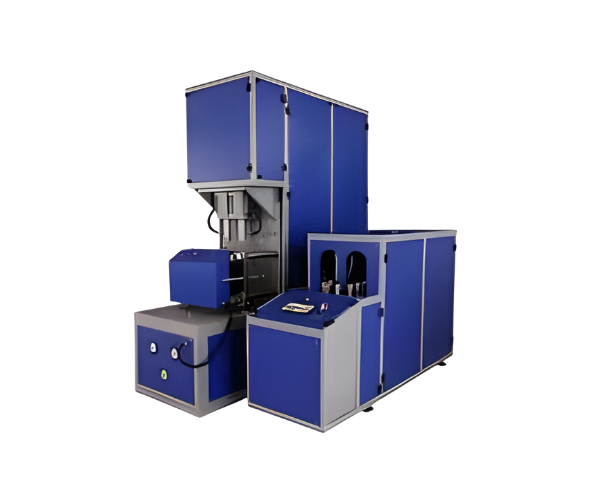

Semi Automatic Blow Molding Machine
Semi Automatic Blow Molding Machine Semi Automatic Blow Molding Machine
High Efficiency | Stable Output | Precision Bottle Formation
Designed for reliable PET bottle production, our Semi Automatic Blow Molding Machine is ideal for mineral water and packaged drinking water projects. It ensures consistentbottle quality, controlled heating, and efficient blowing performance for small to mediumscale operations.
Machine Specifications Machine Specifications
Type:
Semi Automatic Blow Molding Machine
Production Capacity:
900 – 1100 Bottles Per Hour (BPH)
Cavity:
2 Cavity System
Bottle Size Range:
60 ml to 2000 ml
Neck Size:
28 mm Standard
Heating System:
Infrared (IR) Heaters – 2 KW Each
Operation:
Microprocessor Controlled
Power Requirement:
Three Phase Supply
Heating & Preform Handling
- Infrared heaters positioned on one side for efficient heating
- Continuous preform rotation system for uniform heat distribution
- Neck cooling pipeline to prevent deformation of preform neck
- Optimized heating chamber for energy-efficient performance
Blowing Unit (Advanced Features)
- Microprocessor operated blowing cycle for precision control
- Two cavity system ensuring higher productivity
- Low Blow & High Blow Valves for accurate bottle formation stages
- 8 Ton Hydropneumatic Cylinder for strong and secure mold locking
- Four Plate & Four Tie-Bar Structure for machine stability and durability
Air System & Pressure Control
- Additional Air Storage Tank to prevent pressure drop during operation
- High-Efficiency Air Filter capable of handling up to 30 Kg blowing pressure
- FRL Unit (Filter-Regulator-Lubricator) for smooth functioning of valves & cylinders
- Stable air supply system ensures consistent bottle quality
Adjustability & Design
- Adjustable Rubber Stoppers for different bottle heights
- Quick mold setting and easy changeover
- Compact design for space-saving installation
- Heavy-duty frame for vibration-free operation
Key Advantages
- Consistent output with uniform bottle thickness
- Low maintenance and easy operation
- Energy-efficient heating and air usage
- Suitable for continuous production
- Ideal for mineral water & PET bottle manufacturing units
Applications
- Mineral Water Plants
- Packaged Drinking Water Industry
- PET Bottle Manufacturing Units
A perfect combination of performance, durability, and cost-efficiency—built to deliver high-quality bottles with stable production output.
