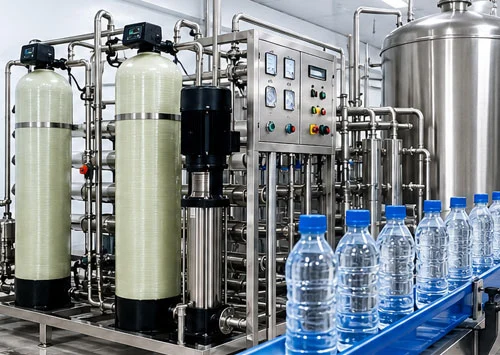

Selecting certified food-grade machinery is the core requirement for setting up a commercial bottling plant. As a leading Mineral Water Plant Manufacturer, Dada’s Soda Fountain designs integrated high-TDS reverse osmosis skids, SS 304 sanitary storage vessels, and automatic bottling equipment tailored for commercial packaging.
Detailed Equipment & Component Breakdown
- Pre-Treatment: Sand & activated carbon vessels remove turbidity and organic chlorine.
- RO & UF Membranes: High TDS rejection membranes engineered for brackish water sources.
- Sterilization Units: SS 316 chamber inline UV sterilizers and ozone generators.
1. Purification & Filtration Skids
- Stainless Steel Tanks: Food-grade SS 304 / SS 316 storage tanks prevent contamination.
- Precision Dosing: Automated pH control and anti-scalant dosing pumps.
- High-Pressure Pumps: SS vertical inline pumps for continuous membrane pressure.
2. Sanitary Storage & Dosing
3. Bottling & Packaging Automation
- Monoblock 3-in-1 Unit: Automatic rinsing, pressure filling, and cap sealing.
- PET Blow Molding: Fully automatic preform heating and bottle blowing.
- Labeling & Shrinking: Batch coding, sleeve labeling, and thermal shrink wrap bundling.
Machinery Technical Specifications
| Machinery Component | Material Grade | Capacity Range | Control Interface |
|---|---|---|---|
| RO Water Skid | SS 304 / SS 316 / FRP | 100 LPH to 1000+ LPH | PLC Touch Screen Panel |
| Monoblock Bottling Line | Sanitary SS 304 | 24 BPM to 60+ BPM | Automatic Safety Interlocks |
| Ozone & UV Sterilizer | SS 316 Pressure Chamber | 100 LPH to 1000 LPH | Continuous Inline Treatment |
| Blow Molding Machine | Heavy-Duty Steel / SS | 900 BPH to 1100 BPH | Pneumatic Heating System |
Ready to Set Up Your Bottling Machinery?
Explore complete turnkey plant options on our official product catalog or read our end-to-end setup guide.
